Split-Pak™ Remote Refrigeration Systems

HIGH QUALITY, ENERGY-SAVING COMPONENTS SIZED TO FIT YOUR SPECIFIC REQUIREMENTS

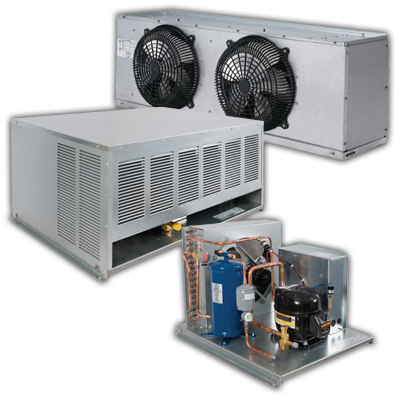

Master-Bilt’s Split-Pak™ split refrigeration units for walk-ins feature a condensing unit paired with a matching evaporator coil. With split, or remote, refrigeration systems, the condensing unit is installed away from the walk-in cooler or freezer—typically outside the building or on the roof—while the evaporator coil is located inside the walk-in.

Split-Pak models should be used when:

Larger capacity systems are needed
Height above the walk-in is restricted
It’s important to move heat outside and reduce the load on the HVAC system
Lower noise levels are desired inside the conditioned space
Unchilled product needs to be rapidly brought down to the proper storage temperature
Frequent walk-in door openings are expected

Request a Quote

The Best Warranty in the Industry

18 Month Parts & Labor Standard; Optional Extended Compressor Warranty Available

Optimizes energy savings by removing workspace heat

Eco-friendly refrigerant provides maximum sustainability

Fully customizable with the widest range of options

Condensing Unit Standard Features

DOE and SNAP compliant
Blended refrigerants (R448A/R449A)
Range from 1/2 to 15 H.P.
Medium temp units available in hermetic and compliant scroll compressor models
Compliant, energy efficient scroll compressors featured exclusively in low temp units for added reliability
With or without matching evaporator coils
Factory assembled on a galvanized steel angle leg base.
Generously-sized condenser for dependable performance
Pre-piping kit including sight glass
Pre-wiring kit (defrost timer standard on low temp models only)
Preset non-adjustable high and low pressure controls for medium temp units. Non-adjustable high and adjustable low pressure controls for low temp.
Crankcase heater
Head pressure control valve ensures proper operation in low ambient conditions
Suction service valve
Heavy-duty galvanized steel base
Liquid line filter/drier
Pre-wired electrical control panel
Timer (standard on low temp models only)
Compressor contactor
Defrost heater contactor (when required)
Rifled tubes in condenser add efficiency
PSC condenser fan motors
Large liquid receiver (for max. 100 ft. line run)
One year limited compressor warranty (optional four year extended warranty available)

Condensing Unit Options

Special voltages
Insulated and heated receiver (thermostatically controlled)
Suction accumulator (shipped loose)
Coated condenser coils
Oil separator
Phase loss/low voltage monitor
Factory pre-assembled evaporator coil (includes factory pre-mounting of thermostatic air control and expansion valve)
Factory pre-charged system for 5 HP and under with quick connect liquid and suction line sets up to 50 ft. (specify length when ordering)
Adjustable low pressure control for medium and high temp units
Dual pressure control (adjustable)
Circuit breaker
Suction filter
Fan cycling switch
Pre-mounted solenoid at evaporator
Liquid line solenoid valve (shipped loose)
Timer for medium temp units
Heavy-duty rack base
Energy saving LogiTemp® electronic controller system (standard on freezer applications 6 H.P. and above)
LogiTemp® Plus electronic controller system with Reverse Cycle Defrost
Extended four year limited compressor warranty

Evaporator Coil Standard Features

Properly sized expansion valve
Room thermostat
Energy efficient EC motors on single phase coils
Electric defrost models feature defrost termination/fan delay controls and drain line heaters
Standard voltages: 115/60/1 (medium and high temp air defrost models), 208-230/60/1 and 208-230/60/3

Evaporator Coil Pre-Configured Options

Thermostatic expansion valve (TXV) and thermostat shipped loose
TXV installed, thermostat mounted
TXV installed and thermostat mounted, liquid line suction valve mounted and wired
Electronic controller installed

Click or tap here for condensing unit and evaporator coil spec sheets.
