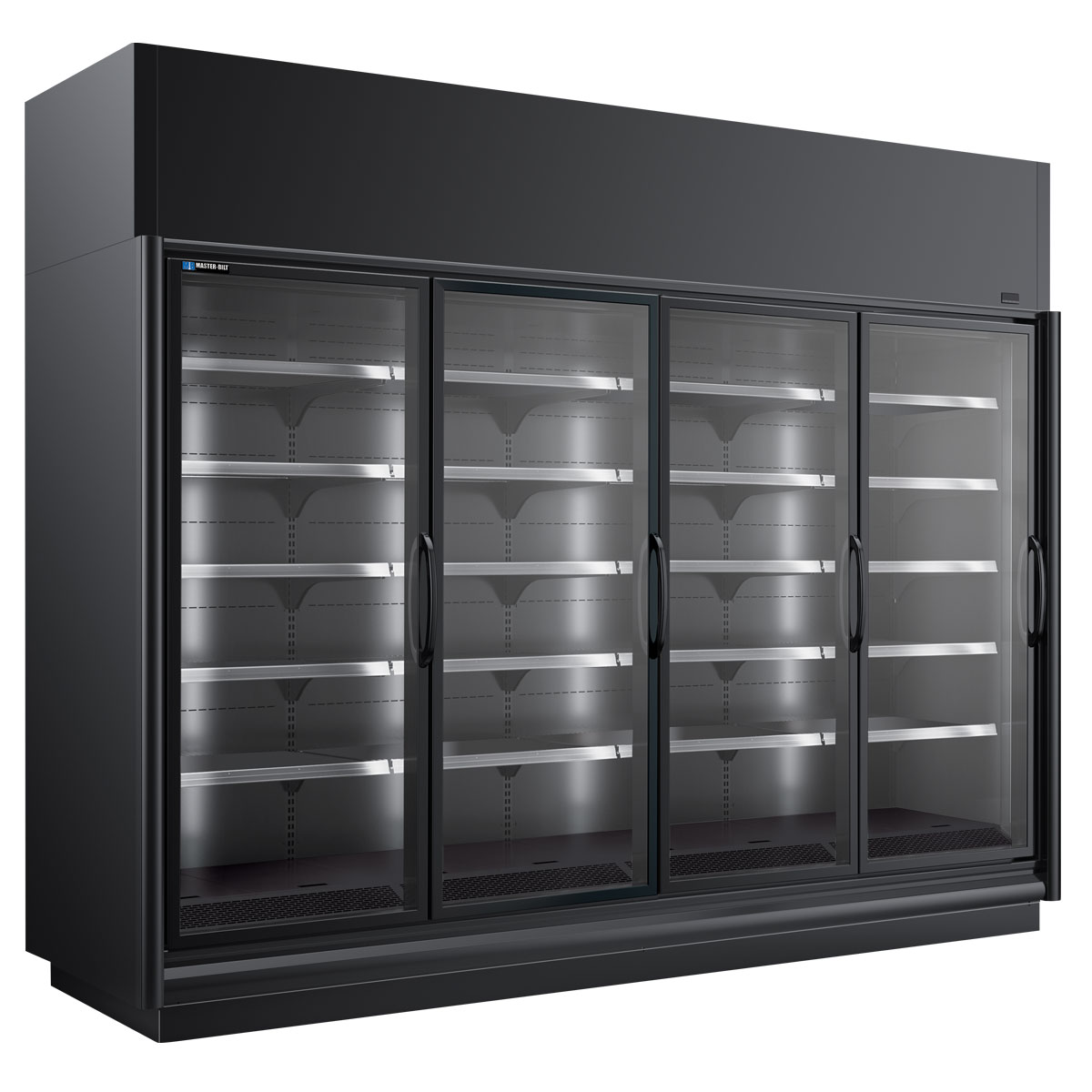

Pre-configured Endless Display Cases

Endless merchandisers are highly customizable and can be configured to meet nearly any retail requirement. However, some situations call for a single cooler or freezer case — that’s where the Endless Complete Package (CP) models come in.

Endless CP Merchandiser models — designed for easy, no-fuss ordering — ship with all components necessary for quick, seamless installation:

Self-contained refrigeration system*
Black interior and exterior
Mounted left and right-hand ends
Top shroud for covering refrigeration system*
Bumper assembly*

*Condensing unit, shroud, and bumper assembly ship loose.

Request a Quote

BEM-2-30CP

62 (1581)*

40-3/8 (1026)**

81-7/8 (2080)***

10

208-230VAC/60/1****

Hardwire

BEM-3-30CP

92-7/16 (2354)*

40-3/8 (1026)**

81-7/8 (2080)***

15

208-230VAC/60/1****

Hardwire

BEM-4-30CP

122-7/8 (3102)*

40-3/8 (1026)**

81-7/8 (2080)***

20

208-230VAC/60/1****

Hardwire

BEM-5-30CP

153-5/16 (3900)*

40-3/8 (1026)**

81-7/8 (2080)***

25

208-230VAC/60/1****

Hardwire

BEL-2-30CP

62 (1581)*

40-3/8 (1026)**

81-7/8 (2080)***

10

208-230VAC/60/1****

Hardwire

BEL-3-30CP

92-7/16 (2354)*

40-3/8 (1026)**

81-7/8 (2080)***

15

208-230VAC/60/1****

Hardwire

BEL-4-30CP

122-7/8 (3102)*

40-3/8 (1026)**

81-7/8 (2080)***

20

208-230VAC/60/1****

Hardwire

BEL-5-30CP

153-5/16 (3900)*

40-3/8 (1026)**

81-7/8 (2080)***

25

208-230VAC/60/1****

Hardwire

*Add 2-1/2″ (64 mm) to length for each end or insulated partition. Also allow an additional 1″ clearance for case and assembly dimensional tolerance stack-up.
**Depth includes end panels, door handles and required rear piping stand-offs.
***Height includes removable skid runner for installation purposes. Without runner – 79-3/4″H. Add 20″ for overhead shroud.
****208-230V 4-wire power supply required.

Built to Last – Warranty to Prove It

Standard Two-Year Parts and Labor Warranty on Cabinet and Condensing Unit, Five-Year on Compressor Parts

Product Specifications

Ships complete with all components needed for quick and easy installation including self-contained refrigeration system, mounted left and right-hand ends, a top shroud for covering refrigeration system, and bumper assembly
23″ deep shelves for maximum pack-out space
100% of pack-out space falls within the visible merchandising area so customers see all products
30″ wide glass doors with an additional 200+ square inches of viewing area per door
Front air curtain prevents warm, moist air from entering merchandiser during door openings for the most energy-efficient design
Lights are more energy efficient with more lumens per watt while also maximizing product appearance
Front air screen blocks warm outside air and means fewer required defrosts and greater energy efficiency
The evaporator coil is in the bottom of the case allowing premium merchandising space at the top
Narrow footprint and shallow bumper for minimum intrusion into sales space
Strategic venting ensures proper airflow across the product for consistent cooling
Cam-locked panels on the back, top, and bottom for added strength and rigidity
2-1/2″ thick back wall, bottom, and ends meet or exceed competitor models
Eco-friendly insulation with zero ozone depletion potential (ODP)
EC fan motors are up to 65% more efficient than standard motors and reduce waste heat inside the cold space
Flexible refrigerant line sets on self-contained models for easier installation
UL and C-UL listed and UL EPH classified
Warranty: Standard limited two-year parts and labor on the cabinet and condensing unit, with five-year coverage on compressor part
