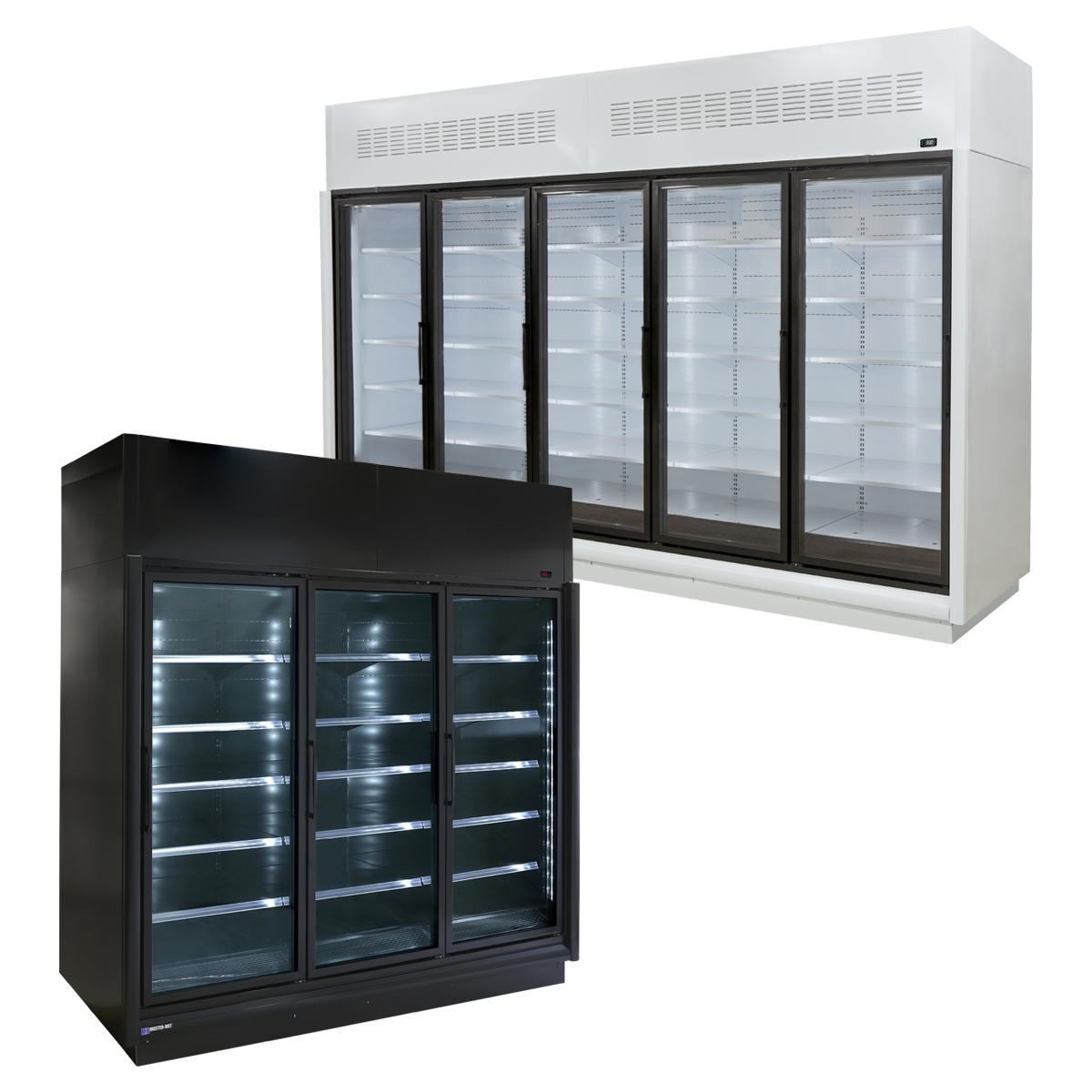

Endless Merchandisers with R290 Refrigerant

Retail-Ready Cooling That Sells More

Discover refrigeration that’s better for the environment and your bottom line. Master-Bilt Endless merchandisers with R290 refrigerant deliver maximum display space, superior performance, and sustainable operation for today’s food retail operations.

Eco-Friendly Performance

R290 refrigerant features an ultra-low Global Warming Potential of just 3, providing enhanced performance while extending equipment lifespan and conserving energy. Proven through years of field testing, R290 systems deliver optimum reliability without compromising quality.

Maximized Merchandising Space

The space-saving Endless design eliminates bulky partitions between modules, functioning as one continuous line rather than individual cabinets joined together. Reducing the need for partitions and gaps between modules optimizes your valuable sales floor.
With the evaporator coil located at the bottom, 100% of product space falls within shoppers’ eye level making premium top merchandising positions fully usable.

Contemporary Design

Clean, modern styling creates a high-quality retail showcase. The 30″ wide doors maximize product viewability while the modular design allows flexible configurations with as many doors as your operation requires.

Request a Quote
Model
Width (in/mm)
Depth (in/mm)
Height (in/mm)
Number of Shelves
Electrical Characteristics (volt/hz/phase)
Electrical Connection
BEM-2-30CU
62 (1581)
40-3/8 (1026)
97-1/8 (2467)
10
208-230VAC/60/1
Hardwire
BEM-3-30CU
92-7/16 (2354)
40-3/8 (1026)
97-1/8 (2467)
15
208-230VAC/60/1
Hardwire
BEM-4-30CU
122-7/8 (3102)
40-3/8 (1026)
97-1/8 (2467)
20
208-230VAC/60/1
Hardwire
BEM-5-30CU
153-5/16 (3900)
40-3/8 (1026)
97-1/8 (2467)
25
208-230VAC/60/1
Hardwire
BEL-2-30CU
62 (1581)
40-3/8 (1026)
100-1/8 (2543)
10
208-230VAC/60/1
Hardwire
BEL-3-30CU
92-7/16 (2354)
40-3/8 (1026)
100-1/8 (2543)
15
208-230VAC/60/1
Hardwire
BEL-4-30CU
122-7/8 (3102)
40-3/8 (1026)
100-1/8 (2543)
20
208-230VAC/60/1
Hardwire
BEL-5-30CU
153-5/16 (3900)
40-3/8 (1026)
100-1/8 (2543)
25
208-230VAC/60/1
Hardwire

*Add 2-1/2″ (64 mm) to length for each end or insulated partition. Also allow an additional 1″ clearance for case and assembly dimensional tolerance stack-up.

**Depth includes end panels, door handles and required rear piping stand-offs.

***Includes removable skid runner for installation purposes. Without runner: 79-3/4″”H. Also includes height of condensing unit (cooler unit is 15.25″”H, freezer unit is 18.25″”H). Does not include height of shroud (when used) in front of condensing units which is 20″H.

****208-230V 4-wire power supply required.



Built to Last – Warranty to Prove It

Standard Two-Year Parts and Labor Warranty on Cabinet and Condensing Unit, Five-Year on Compressor Parts

Extended line-ups take up less room and optimize sales space

Eco-friendly R290 refrigerant provides maximum sustainability

System design delivers unmatched energy efficiency

Product Specifications

  • Innovative design allows condensing units to be removed so merchandiser fits through an 80″ tall door during installation
  • Front air curtain prevents warm, moist air from entering merchandiser during door openings for the most energy efficient design
  • Pack-out space and visible area are aligned for the ultimate in product merchandising
  • Premium top merchandising space is made usable by moving the coil to the bottom of the case
  • 30″ wide doors provide maximum product viewability
  • Strategic venting ensures proper air flow across product
  • Cam-locked panels on back, top and bottom for added strength and rigidity to the case
  • Narrow footprint and shallow bumper for minimum intrusion into sales space
  • Field installed 24 gauge steel shroud with finish matching cabinet exterior
  • Condensing unit metal housing complies with UL standards for A3 refrigerants
  • Factory pre-wired for easy field connection—only the main electrical connection between the merchandiser and incoming power is required on site
  • Five cantilever solid shelves with price tag molding per door
  • Product stop prevents product from falling behind shelves
  • Two-speed EC fan motors are up to 65% more efficient than standard motors with less waste heat present inside the cold space
  • Line sets with quick connect fittings to easily remove condensing unit and reinstall
  • Zero ODP insulation
  • Standard electronic controller
